Industrial Microwave Drying Machine for Pulp Molding - Customizable Tunnel System for Egg Trays & Food Packaging
รายละเอียดสินค้า:
| สถานที่กำเนิด: | จีน |
| ชื่อแบรนด์: | OSMANUV |
| ได้รับการรับรอง: | ISO9001 |
| หมายเลขรุ่น: | OSM-WBHG-1320T |
การชำระเงิน:
| จำนวนสั่งซื้อขั้นต่ำ: | 1ชุด |
|---|---|
| ราคา: | negotiable |
| รายละเอียดการบรรจุ: | กล่องไม้ |
| เวลาการส่งมอบ: | 30~45 วัน |
| เงื่อนไขการชำระเงิน: | ที/ที |
| สามารถในการผลิต: | การเจรจาต่อรอง |
|
ข้อมูลรายละเอียด |
|||
| ทางแห้ง: | ไมโครเวฟ | การให้อาหารเพาว์: | 0.75kW |
|---|---|---|---|
| ความเร็วในการผลิต: | 15-25m/นาที | ทิศทางการเดิน: | จากซ้ายไปขวา |
| ยี่ห้อความถี่: | Shilin หรือ Schneider | ประเภทจาน: | แผ่นรูดด้า |
| ข้อผิดพลาดในการกรอกลับการพับ: | ± 0.1 มม. | ทิศทางการลำเลียง: | จากซ้ายไปขวา |
รายละเอียดสินค้า

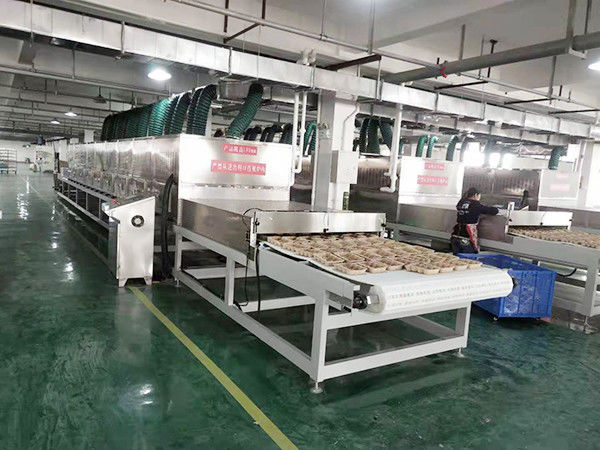

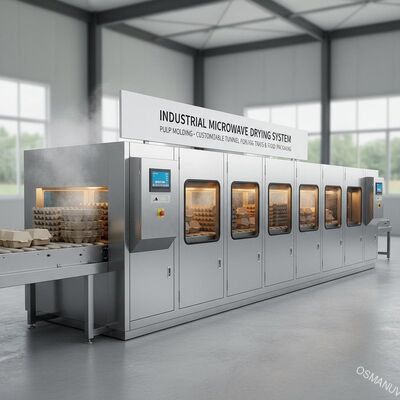

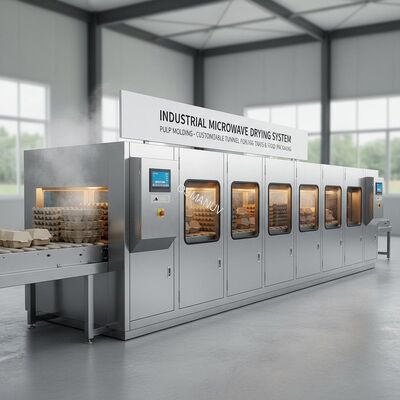

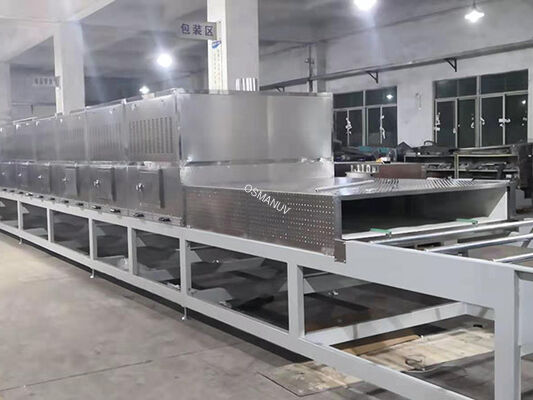

Industrial Microwave Drying Machine for Pulp Molding - Customizable Tunnel System for Egg Trays & Food Packaging
Product Description:
This industrial-grade microwave drying machine is specifically engineered for the pulp molding industry. It delivers rapid, uniform, and energy-efficient drying for products like egg trays, fruit trays, and disposable food packaging. By directly heating water molecules, it drastically reduces drying time from hours to minutes, resulting in a stronger, higher-quality final product with lower energy consumption. The entire production line is customizable to match your output and factory layout.
Composition of Production Line:
-
Infeed Conveyor (Synchronized with molding machine)
-

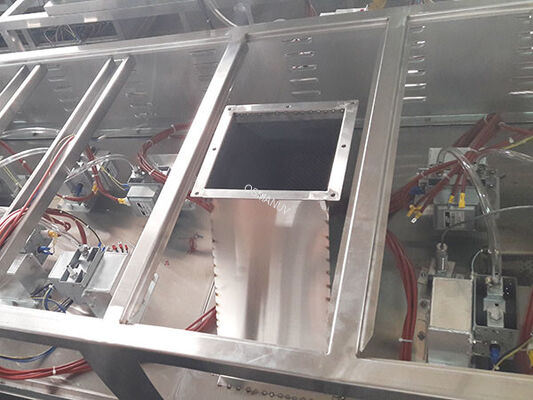

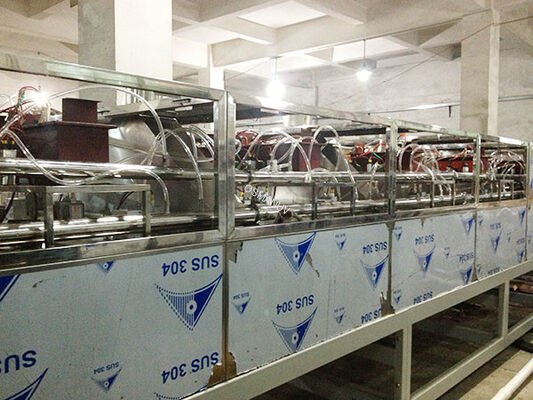

Microwave Heating Chamber (With magnetron arrays)
-
Hot Air Circulation System (For moisture evacuation)
-
Exhaust & Dehumidification System
-
Outfeed & Cooling Conveyor
-
PLC Control Cabinet with Touch Screen HMI
-
Variable Frequency Drive (VFD) for conveyor speed control
Technical Parameters:
| Parameter | Details |
|---|---|
| Model | MWT-PM Series (Fully Customizable) |
| Power Output | 30kW, 50kW, 80kW, 100kW (Selectable & Customizable) |
| Input Voltage | 380V/415V 50Hz/60Hz 3 Phase (or as Customized) |
| Drying Temperature Range | 70°C - 120°C (Precisely Adjustable) |
| Conveyor Belt Width | 600mm, 800mm, 1000mm (Customizable) |
| Drying Time | 5 - 15 minutes (Adjustable via VFD) |
| Control System | PLC + Touch Screen HMI (Programmable Recipes) |
| Overall Dimension | Customized based on power and configuration |
Application:
Pulp molding industry for drying egg trays, fruit trays, industrial packaging, paper pot seedlings, and other 3D molded fiber products.
Customization:
We offer extensive customization including the tunnel length, belt type and width, power configuration, control system integration, and overall layout to seamlessly fit into your existing production line.
Feature:
-
Fast and uniform heating from the inside out.
-
Up to 40% energy savings compared to conventional ovens.
-
Fully customizable power and conveyor speed for different products.
-
Improves product strength and reduces breakage.
-
Compact design, saving valuable factory floor space.
-
PLC control ensures consistent and repeatable results.
Support and Services:
We provide comprehensive support including installation supervision, operator training, remote technical assistance, and a readily available supply of spare parts.
Packing and Shipping:
The machine is securely packed in an export-worthy wooden case or iron frame for safe ocean freight and land transportation. All parts are clearly marked for easy identification.
FAQ:
-
Q: Can this machine connect to my automatic pulp molding machine?
A: Yes, the infeed and outfeed heights and speeds are fully customizable for seamless integration. -
Q: Will microwave drying damage the fragile pulp structure?
A: No, the temperature and power are precisely controlled to prevent scorching or deformation, resulting in a more consistent product. -
Q: What is the typical lead time?
A: Lead time depends on the level of customization, typically ranging from 20 to 35 working days.
