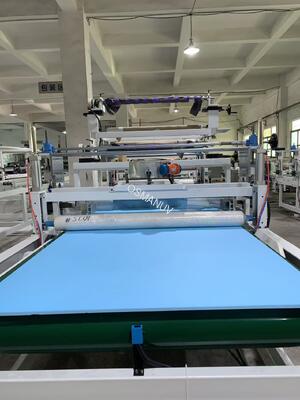

Roll-to-Roll Continuous Doctor Blade Coating Line with Customizable Web Width Tension Control and High Thickness Uniformity
รายละเอียดสินค้า:
| สถานที่กำเนิด: | จีน |
| ชื่อแบรนด์: | OSMANUV |
| ได้รับการรับรอง: | ISO9001 |
| หมายเลขรุ่น: | ข้อมูลจำเพาะ |
การชำระเงิน:
| จำนวนสั่งซื้อขั้นต่ำ: | 1 ชุด |
|---|---|
| ราคา: | ต่อรองได้ |
| รายละเอียดการบรรจุ: | บรรจุภัณฑ์ไม้ |
| เวลาการส่งมอบ: | 30-45 วัน |
| เงื่อนไขการชำระเงิน: | ที/ที |
| สามารถในการผลิต: | การเจรจาต่อรอง |
|
ข้อมูลรายละเอียด |
|||
| แรงดันไฟฟ้าของแหล่งจ่ายไฟ: | 380V, 50HZ, ระบบสามเฟสห้าสาย | ความหนาของการประมวลผล: | 3-80mm |
|---|---|---|---|
| ความยาวรวม: | 27ม | วิธีทำให้แห้ง: | รังสีอัลตราไวโอเลต - รักษาได้ |
| พลัง: | 50KW | การจัดแต่ง: | จุดยูวี เนื้อผง ผลทราย |
| หัวพิมพ์: | เอปสัน S3200 3ชิ้น | หัว qty: | สอง/สาม/สี่ |
รายละเอียดสินค้า
Roll-to-Roll Continuous Doctor Blade Coating Line – Flexible Electronics & Optical Film Mass Production
Product Overview
Our doctor blade coating line enables continuous or batch coating of slurries, pastes, inks, and sol-gel materials onto glass, metal foil, polymer film, or paper. It features high thickness uniformity (< ±2%), low material waste, and stable gap control. Ideal for R&D labs, pilot lines, and full-scale production.
Customizable options include: coating head type (doctor blade / slot die / comma), wet thickness range, drying zone length, substrate handling (sheet-fed or roll-to-roll), and environmental enclosure (dust-free / humidity control / inert atmosphere).
Technical Specifications
| Parameter | Standard Range | Customizable Option |
|---|---|---|
| Coating method | Doctor blade (lab) / Slot die (production) | Comma roll / Microgravure customizable |
| Coating width | 150 mm (lab) / 600 mm (production) | 50 - 1600 mm |
| Substrate type | Glass, film, metal foil | Rigid or flexible customizable |
| Wet coating thickness | 10 - 500 µm | 1 - 2000 µm |
| Thickness uniformity | ±2% | ±0.5% (servo gap control) |
| Line speed | 0.1 - 5 m/min (lab) | 0.05 - 50 m/min |
| Gap adjustment method | Manual micrometer | Motorized servo customizable |
| Drying temperature | RT - 150°C | RT - 300°C (multi-zone) |
| Substrate width (roll-to-roll) | 300 mm | 100 - 1500 mm customizable |
| Tension control range | 10 - 200 N | 5 - 500 N customizable |
| Power supply | 220V / 50Hz single phase | 380V three phase available |
Applications
- Lithium-ion battery electrode coating (anode & cathode)
- Perovskite and organic solar cell active layers
- Quantum dot light-emitting diode (QLED / OLED) films
- Ceramic green tape for MLCC capacitors
- Adhesive, sealant, and thermal interface materials
- Pharmaceutical transdermal patches
- Flexible printed electronics (Ag nanowires, graphene)
- Optical films (anti-reflective, hard coating)
Process parameters customizable for each material type.
Customization Options
- Coating head material: Stainless steel 316L / Tungsten carbide / Polymer
- Blade / die gap adjustment resolution down to 0.1 µm
- Shimming design for patterned or multi-layer coating
- Substrate vacuum chuck or magnetic clamping (for rigid substrates)
- Automated slurry circulation and degassing system
- Exhaust VOC treatment (carbon filter or wet scrubber)
- Cleanroom integration (ISO 5 - ISO 8) with customizable footprint
- Recipe-based PLC control with touch interface
- Edge bead removal (EBR) air knife or suction nozzle
Key Features
- Precision ground doctor blade with wear-resistant edge
- Real-time gap feedback via laser displacement sensor
- Touchscreen HMI with recipe storage for 100+ coating parameters
- Modular design for future upgrades (add dryer, unwind/rewind)
- Anti-drip and overshoot protection for start/stop
- Low material dead volume (< 5 ml for small-scale head)
- Customizable software triggers for vision or thickness measurement
- Optional: thickness gauge integration (confocal / eddy current)
Support and Services
- Free process consultation prior to purchase (upload your material MSDS)
- On-site installation and commissioning by certified engineers
- 18 months warranty on coating head and gap actuator
- Remote support via TeamViewer or equivalent
- Annual calibration service - customizable service plan (1/3/5 years)
- Spare parts inventory for blades, gaskets, and bearings
- Operator training manual & video library included
Packing and Shipping
- Packing: Anti-static film + foam padding + plywood export case
- Coating head shipped separately in protective oil coating
- Dimensions (small lab line): 130×60×60 cm (approx. 180 kg)
- Dimensions (production R2R line): depends on length - customizable packing layout
- Shipping: FCL preferred, LCL available, air freight for urgent lab units
- All packages labeled with lifting points and "Fragile - Precision Gap"
Frequently Asked Questions
Q1: Can this line handle both rigid glass and flexible PET film?
Yes. We offer customizable substrate fixtures: vacuum chuck for glass, pin-lift for rigid panels, or roller nip for film.
Q2: What is the minimum coating quantity for a lab-scale line?
With a small slot die, you can coat with just 5-10 ml of slurry. Die reservoir volume is customizable down to 2 ml.
Q3: Is the drying oven configurable for inert gas (N₂) environment?
Absolutely. Oven gas purging and oxygen monitoring are customizable options for moisture/air-sensitive materials.
ต้องการทราบรายละเอียดเพิ่มเติมเกี่ยวกับผลิตภัณฑ์นี้
