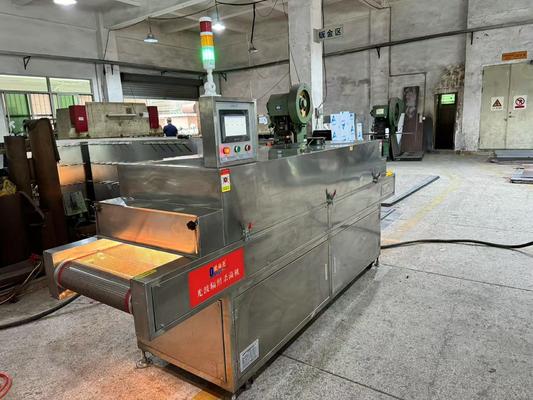

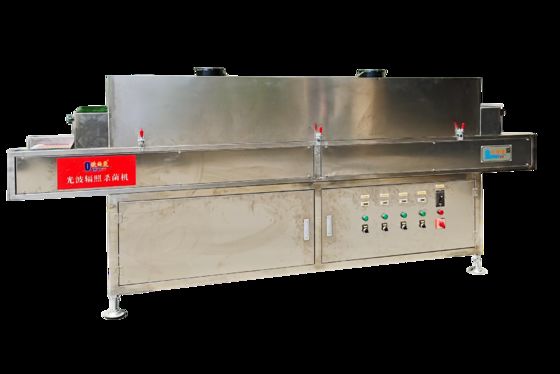

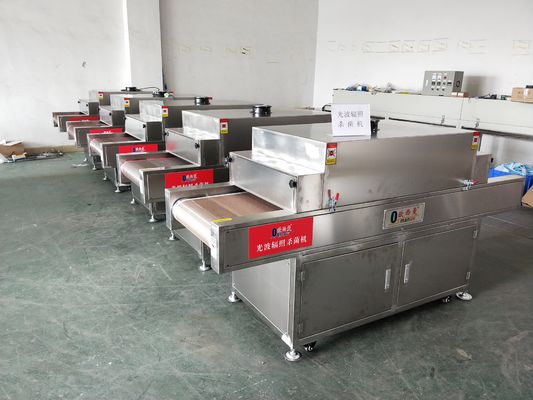

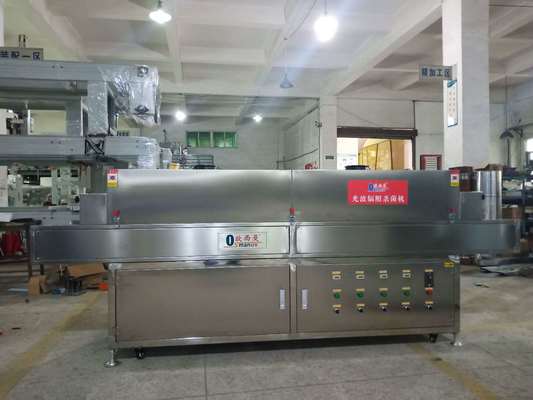

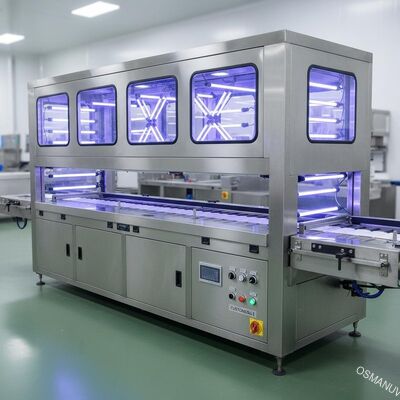

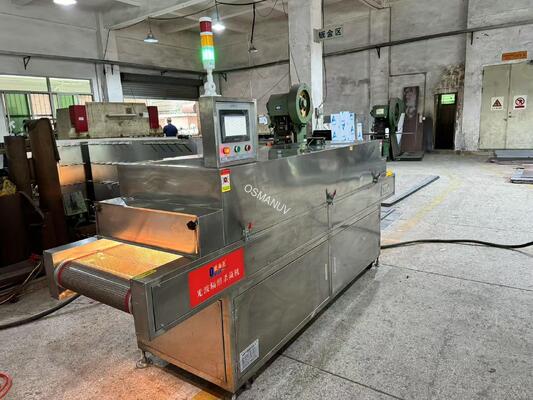

Industrial UV Sterilization Machine for Food & Packaging – Customizable Conveyor Width & Lamp Configuration

lndustrial UV Sterilization Machine for Food & Packaging – Customizable Conveyor Width & Lamp Configuration

Product Description

This industrial UV sterilization machine is designed for high-efficiency disinfection of surfaces, packaging materials, food products, water, and air streams. Utilizing high-intensity UV-C lamps, the system delivers powerful germicidal irradiation that destroys bacteria, viruses, molds, and other pathogens without the use of chemicals. With PLC-controlled operation and customizable configurations, this machine provides a reliable, chemical-free, and energy-efficient solution for manufacturers seeking to meet stringent hygiene and safety standards.

Technical Parameters

Application

Ideal for UV sterilization in the following industries:

• Food processing – Packaging materials, conveyor belts, food surfaces

• Pharmaceutical manufacturing – Vials, bottles, closures, cleanroom surfaces

• Beverage industry – Bottle caps, container sterilization, water treatment

• Medical devices – Surface disinfection of instruments and packaging

• Water treatment – Drinking water, wastewater, process water

• Air purification – HVAC systems, cleanroom air sterilization

• Cosmetics & personal care – Packaging sterilization, production line sanitation

• Electronics – Surface disinfection of sensitive components

Customization

The UV sterilization machine is fully customizable to meet specific production and disinfection requirements:

• Customizable conveyor width and length to accommodate different product sizes and line layouts

• Customizable lamp type and quantity – Low-pressure mercury, amalgam, or LED UV-C options

• Adjustable lamp height – Manual or motorized for varying product heights

• Custom cooling system – Air-cooled or water-cooled based on heat sensitivity and ambient conditions

• Custom irradiation intensity – Tailored to target specific microorganisms (bacteria, viruses, spores)

• PLC programming customization – Multiple recipe storage for different products and sterilization standards

• Custom housing material – SUS304 or SUS316L stainless steel for food-grade and pharmaceutical applications

• Integration capabilities – Custom infeed/outfeed sections for seamless integration into existing production lines

Features

• High-intensity UV-C lamps – Delivers rapid and effective microbial inactivation

• Advanced reflector system – Maximizes UV energy utilization and ensures uniform irradiation

• PLC control with HMI – Intuitive operation, real-time monitoring, lamp life tracking, and recipe storage

• Adjustable conveyor speed – Allows precise control of UV exposure time

• Safety interlocks – Automatic lamp shutdown upon door/panel opening for operator protection

• Stainless steel construction – Corrosion-resistant, easy to clean, suitable for sanitary environments

• Low maintenance – Long lamp life and modular design for easy replacement

• Chemical-free disinfection – No chemical residues, safe for food contact and sensitive products

• Ozone-free or ozone-producing options – Customizable based on application requirements

Support and Services

• Customization consultation – Tailored design based on product type, throughput, and disinfection targets

• Installation and commissioning – On-site or remote support

• Operator training – Comprehensive training for operation, maintenance, and safety protocols

• Technical support – Lifetime remote assistance

• Spare parts supply – Genuine replacement lamps, quartz sleeves, ballasts, and belts

• Warranty – 1-year standard warranty with extended options available

• Validation support – Assistance with UV dosage validation and microbial testing protocols

Packing and Shipping

• Packing: Wrapped in protective film, secured with wooden pallet, reinforced edges for export

• Shipping: By sea, air, or land based on destination

• Lead Time: 20–40 days after customization confirmation

• Documentation: Operation manual, electrical diagrams, lamp life log, and CE certification (if applicable)

FAQ

Q1: What types of microorganisms can UV-C sterilization eliminate?
UV-C light at 254 nm effectively inactivates bacteria (including Salmonella, E. coli), viruses (including influenza, coronavirus), molds, yeasts, and spores. The required UV dosage can be customized based on target pathogens.

Q2: What is the difference between low-pressure mercury lamps and LED UV-C lamps?
Low-pressure mercury lamps are cost-effective and widely used for surface and water disinfection. LED UV-C lamps offer instant on/off, longer lifespan, no mercury content, and precise wavelength control. Both options are customizable based on application needs.

Q3: Is the machine suitable for food contact surfaces?
Yes, the machine uses chemical-free UV-C technology and features stainless steel construction, making it safe for direct food contact applications. Custom food-grade configurations (SUS316L) are available.
