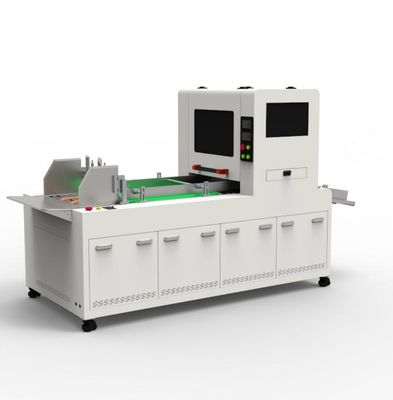

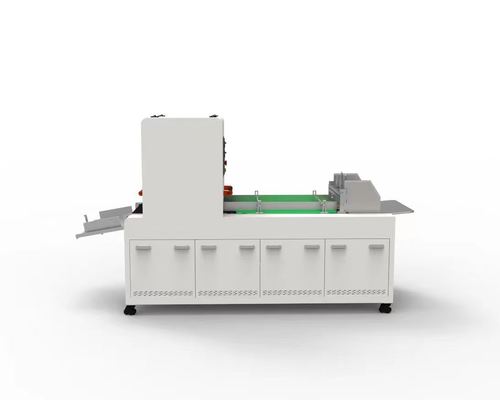

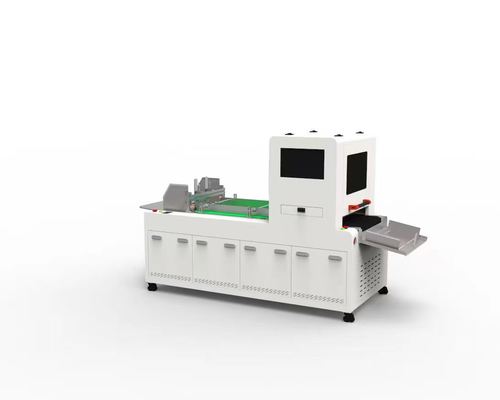

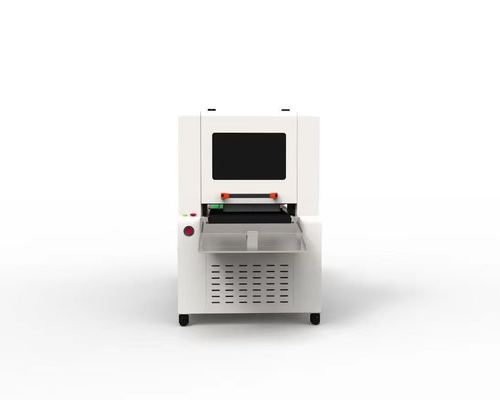

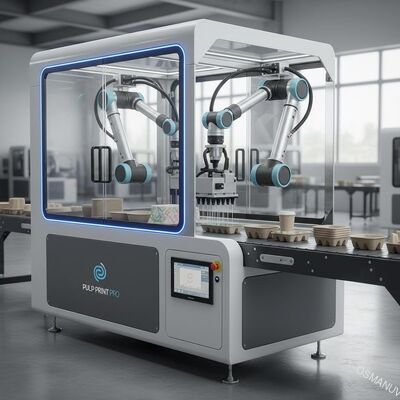

Integrated Robotic Pick-Place One-Pass Water-Based Digital Printer for Molded Pulp – Inline Automated Decoration

Integrated Robotic Pick-Place One-Pass Water-Based Digital Printer for Molded Pulp – Inline Automated Decoration

Composition of Production Line

• Automatic product feeder (vibratory bowl, belt conveyor, or robotic arm – customizable)

• Vision-guided alignment station (product orientation and registration detection)

• Single-pass print engine with stationary printhead array

• Low-temperature hot air drying tunnel (≤60°C, customizable temperature profile)

• Automatic unloader with product stacking or conveyor transfer module

• Central PLC control system with recipe management and data logging

• Optional inline print quality inspection camera

• Integration interface for connection with upstream molding press and downstream packaging-25

Product Description

This fully automated one-pass water-based digital printer is designed for inline integration directly after the molding or drying stage of a molded pulp production line. Products are fed automatically via robotic arm or conveyor, aligned using a vision system for precise registration, printed in a single pass by a stationary printhead array (no reciprocating carriage to limit speed), then dried and unloaded – all without manual handling.-25 This solution eliminates the labor-intensive manual printing process commonly used in molded pulp finishing, significantly boosting line efficiency from 15–20 cycles per minute to 40–60 cycles per minute. Engineered for water-based pigment inks with ultra-low VOC emissions and energy-efficient low-temperature drying, it is ideal for high-volume molded pulp tray, clamshell, and industrial cushioning packaging manufacturers seeking turnkey automation.-

Technical Parameters

Application

• High-volume inline printing of logos, certifications, and batch codes on molded pulp egg trays and fruit trays

• Direct printing on fast-food clamshell containers and cup carriers

• Part numbers, handling instructions, and QR codes on electronic molded pulp cushioning trays

• Customized short-run branded pulp packaging integrated directly into production line-25

Customization

Every parameter of this system is customizable: print area dimensions (up to 600×500 mm), print resolution vs. line speed trade-off, color configuration (CMYK only or CMYK+White+Spot), drying tunnel length and temperature profile, product loading interface (robotic gripper, custom jigs, or belt conveyor), unloading system (stacking, sorting, or conveyor transfer), and customizable integration connectors to match any upstream molding press and downstream packaging equipment.-25

Feature

• Single-pass printing eliminates carriage reciprocation for maximum speed

• Plug-and-play integration with existing molded pulp production lines

• Vision-guided alignment ensures consistent registration on randomly oriented products

• Low-temperature drying (<60°C) – safe for heat-sensitive molded pulp fibers

• Zero tooling cost – new product design ready in minutes via software

• Real-time printhead health monitoring and automatic nozzle compensation

• Recipe management stores 200+ product profiles with one-touch job recall

• Compact footprint – fits inline between molding press and stacking station

Support and Services

• Turnkey line integration consultation and custom interface design

• On-site commissioning and full operator training (5 days)

• 18-month warranty on printheads and electronics (extended coverage available)

• Lifetime remote diagnostics and predictive maintenance alerts

• Spare parts kits stocked regionally with 24-hour shipment guarantee

• Annual preventative maintenance contract available

Packing and Shipping

• Disassembled into 4 main modules (feeder, print engine, drying tunnel, unloader/stacker)

• Export-grade plywood crates with foam padding and moisture barrier

• Container type: 20‘GP or 40’HC depending on configuration

• Full installation drawings, 3D layout, and electrical schematics included

• Delivery: FOB Shanghai / CIF / DDP available

FAQ

Q: How do I integrate this printer into my existing molding line?
A: Our engineering team provides a customizable integration interface design to match your specific upstream feeder and downstream handling equipment. Most installations are completed within 5 days.

Q: Can the system print molded pulp products with very irregular shapes?
A: Yes – vision guidance works with a wide range of geometries. For extremely irregular shapes, we offer customizable product-specific fixture tooling for the loading station.

Q: What happens if the printhead nozzles clog during production?
A: The system features real-time nozzle health monitoring and automatic compensation via adjacent nozzles. Scheduled automatic cleaning cycles are customizable and can be set based on cumulative print time or ink usage.

Q: How long does it take to change over between different product shapes?
A: Using the recipe management system and quick-change mechanical fixtures (customizable), typical changeover time is under 5 minutes.
